Airmux-5000/BS/F58F/250M/INT Point to Multi-Point

Carrier Class BroadBand Wireless

Part of RAD Airmux 5000 Series

Airmux-5000/BS/F58F/250M/INT PTMP (Point-to-Multi-Point) Microwave Base Station

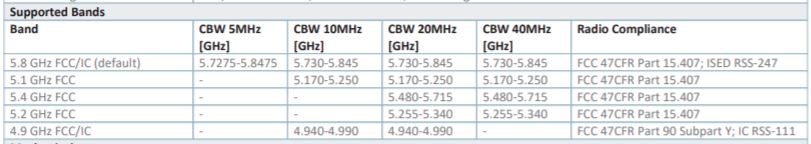

Airmux-5000/BS/F58F/250M/INT from RAD is a sector Base Station microwave radio unit (HBS) that provides up to 250 Mbps net aggregate throughput while delivering access connectivity for up to 32 RAD Airmux-5000 Subscriber Units (HSU). The RAD Airmux-5000/BS/F58F/250M/INT supports microwave frequnecy ranges from 4.9 to 5.8 GHz and complies with FCC/IC & FCC regulations. The Airmux-5000/BS/F58F/250M/INT radio comes with an integrated antenna. Other models of the Airmux-5000 base stations have external antennas and even greater throughput.

Highlights of This RAD Airmux-5000/BS/F58F/250M/INT Include:

• Long range - Up to 40 km / 25 miles
• Supports up to 32 HSUs
• Up to 250 Mbps net aggregated throughput
• Single radio supporting multiple bands
• Exceptional short and constant latency
• Guaranteed Service Level Agreement (SLA) per HSU
• Ease of operation and maintenance
• Robust and reliable operation in harsh conditions, extreme temperatures and some nonline-of-sight scenarios
• Advanced MIMO, OFDM and Diversity technologies

RAD Airmux-5000/BS/F58F/250M/INT Radio Information:

• Max Capacity 250 Mbps net aggregate throughput
• Range Up to 40 km / 25 miles
• Channel Bandwidth Configurable: 10, 20, 40 MHz (for the default band)
• Modulation MIMO-OFDM (BPSK/QPSK/16QAM/64QAM)
• Adaptive Modulation & Coding Supported
• Automatic Channel Selection Supported upon power up
• Smart Bandwidth Mangement (DBA) - supported
• DFS Supported (FCC)
• Diversity Supported
• Max Tx Power 25 dBm; max EIRP 36dBm (for the default band)
• Duplex Technology - TDD
• Error Correction FEC k = 1/2, 2/3, 3/4, 5/6
• Encryption AES 128; FIPS 197; AES256 optional (via Software License Key)
• Support Indoor units RAD PoE devices (Airmux-PoE/GBE/ACxx)
• Uplink / Downlink Allocation Configurable: Symmetric or Asymmetric
• End to End Latency Typical: 3.5msec @ 2 HSUs; 20msec @ 32 HSUs
• Layer 2 Bridging learning of 5K MAC addresses
• QoS Packet classification to 4 priority queues according to 802.1P or Diffserv
• VLAN Support 802.1Q, QinQ, 4094 VLANs
• TDD Intra Site Synchronization Supported
• TDD Inter Site Synchronization Supported through common GPS receiver per site
• ODU Management IPv4/IPv6 dual-stack; SNMP v1 and v3; HTTP using web browser
