Transition Networks


E-100BTX-FX-05 Fast Ethernet Media converters



E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters from Transition Networks are used to extend the network distance and connect remote devices.

E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters E-100BTX-FX-05 E-100BTX-FX-05(SC) E-100BTX-FX-05(LC) E-100BTX-FX-05(MT) E-100BTX-FX-05(SM) E-100BTX-FX-05(SMLC) E-100BTX-FX-05(LH) E-100BTX-FX-05(XL) E-100BTX-FX-05(LW) E-100BTX-FX-05(XLW)

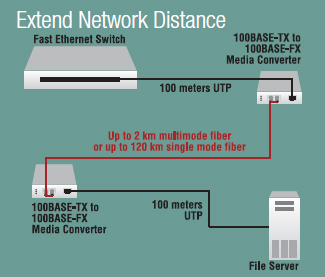

Extend Network Distance.
Used in pairs, the E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters can extend distances between two twisted pair switches or a switch and a server up to 2 km over multimode fiber or up to 120 km over single mode fiber.

E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters are also used to Connect Remote Devices
Using one media converter, a switch with a copper port can be connected to a switch with an existing fiber interface.

Features of the E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters include:

Operates under heavy traffic loads without excess heat, so there is no need for a failure-prone internal fan.
Round trip delay of only 40 bit times, far below the Class II rating of 92 bit times.

E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters used to extend the network distance E-100BTX-FX-05 E-100BTX-FX-05(SC) E-100BTX-FX-05(LC) E-100BTX-FX-05(MT) E-100BTX-FX-05(SM) E-100BTX-FX-05(SMLC) E-100BTX-FX-05(LH) E-100BTX-FX-05(XL) E-100BTX-FX-05(LW) E-100BTX-FX-05(XLW) E-100BTX-FX-05(100) E-100BTX-FX-05(101) E-100BTX-FX-05(102) E-100BTX-FX-05(103) E-100BTX-FX-05(104) E-100BTX-FX-05(105) E-100BTX-FX-05(106) E-100BTX-FX-05(107)

Auto-Negotiation
AutoCross™
Link Pass Through
Far End Fault (FEF)
Automatic Link Restoration
Pause

The converters will automatically re-establish link when connected to two 10/100 auto-negotiating switches if link is lost. With other manufacturers’ converters the user must intervene to re-establish link.

In addition to the model E-100BTX-FX-05(SC), Transition Networks produces several models of the E-100BTX-FX(xxxx)


E-100BTX-FX-05 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1300nm MM (ST) [2 km/ 1.2 mi.] Link Budget: 11.0 dB
E-100BTX-FX-05(SC) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1300nm multimode (SC) [2 km/ 1.2 mi.] Link Budget: 11.0 dB
E-100BTX-FX-05(LC) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1300nm multimode (LC) [2 km/ 1.2 mi.] Link Budget: 11.0 dB
E-100BTX-FX-05(MT) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1300nm MM (MT-RJ) [2 km/ 1.2 mi.] Link Budget: 14.5 dB
E-100BTX-FX-05(SM) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm SM (SC) [20 km/12.4 mi.] Link Budget: 16.0 dB
E-100BTX-FX-05(SMLC) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm SM (LC) [20 km/12.4 mi.] Link Budget: 17.3 dB
E-100BTX-FX-05(LH) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm SM (SC) [40 km/24.9 mi.] Link Budget: 26.0 dB
E-100BTX-FX-05(XL) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm SM (SC) [60 km/37.3 mi.] Link Budget: 29.0 dB
E-100BTX-FX-05(LW) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm SM (SC) [80 km/49.7 mi.] Link Budget: 29.0 dB
E-100BTX-FX-05(XLW) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm SM (SC) [120 km/74.6 mi.] Link Budget: 36.0 dB

Single Fiber Products:
Transition Networks single fiber models E-100BTX-FX-05(100) E-100BTX-FX-05(101) E-100BTX-FX-05(102) E-100BTX-FX-05(103) E-100BTX-FX-05(104) E-100BTX-FX-05(105) E-100BTX-FX-05(106) E-100BTX-FX-05(107)
Recommended use in pairs (the frequency of the RX of the unit on one end must match the TX of of the other end)
E-100BTX-FX-05(100) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm TX / 1550nm RX single fiber single mode (SC) [20 km/12.4 mi.] Link Budget: 19.0 dB
E-100BTX-FX-05(101) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm TX / 1310nm RX single fiber single mode (SC)

E-100BTX-FX-05(102) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm TX / 1550nm RX single fiber single mode (SC) [40 km/ 24.9 mi.] Link Budget: 25.0 dB
E-100BTX-FX-05(103) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm TX / 1310nm RX single fiber single mode (SC) [40 km/ 24.9 mi.] Link Budget: 25.0 dB

E-100BTX-FX-05(104) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm TX / 1550nm RX single fiber single mode (SC) [60 km/37.3 mi.] Link Budget: 16.0 dB
E-100BTX-FX-05(105) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm TX / 1310nm RX single fiber single mode (SC) [60 km/37.3 mi.] Link Budget: 26.0 dB

E-100BTX-FX-05(106) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1310nm TX / 1550nm RX single fiber single mode (SC) [80 km/49.7 mi.] Link Budget: 33.0 dB
E-100BTX-FX-05(107) 100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-FX 1550nm TX / 1310nm RX single fiber single mode (SC) [80 km/49.7 mi.] Link Budget: 32.0 dB

E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converter Optional Accessories


(sold separately)
Wide Input (18 – 72VDC) Power Supplies:
SPS-1872-CC Piggy Back Power Supply
SPS-1872-SA Stand-Alone Power Supply

Mounting Options:

E-MCR-05 12-slot Media Converter Rack
RMS19-SA4-01 4-slot Media Converter Shelf
WMBD DIN Rail Bracket 5.0" [127 mm]
WMBD-FS DIN Rail Bracket (flat, small) 3.1" [79 mm]
WMBL Wall Mount Bracket 4.0" [102 mm]

Product data sheet for the E-100BTX-FX-05(SC) and other E-100BTX-FX-05 Fast Ethernet Media converters Transition Networks E-100BTX-FX-05 pdf
