J/RS232-CF-01 RS232 Copper to Fiber – Call: 727-398-5252 Cutter Networks for Your Best DataCom Source for J/RS232-CF-01 RS232 From Transition Network

Transition Networks

J/RS232-CF-01 RS232 Copper to fiber Media Converter

J/RS232-CF-01 RS232 Copper to fiber Media Converter

Transition Networks’ J/RS232-CF-01 and other models of the J/RS232 'Just Convert-IT' serial RS-232 to Fiber Media Converter are an inexpensive, no frills way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120Kb/s. Unit and Port LEDs allow for quick status information on the converter.

Product Number Product Type Topology Port One Port Two Cross Reference
J/RS232-CF-01 Just Convert-IT Stand-alone RS232 DB-9 (female) [15 m/49 ft.] 1300 nm multimode (ST) [2 km/1.2 mi.]
J/RS232-CF-01(SC) Just Convert-IT Stand-alone RS232 DB-9 (female) [15 m/49 ft.] 1300 nm multimode (SC) [2 km/1.2 mi.]
J/RS232-TF-01 Just Convert-IT Stand-alone RS232 DB-9 (male) [15 m/49 ft.] 1300 nm multimode (ST) [2 km/1.2 mi.]
J/RS232-TF-01(SC) Just Convert-IT Stand-alone RS232 DB-9 (male) [15 m/49 ft.] 1300 nm multimode (SC) [2 km/1.2 mi.]

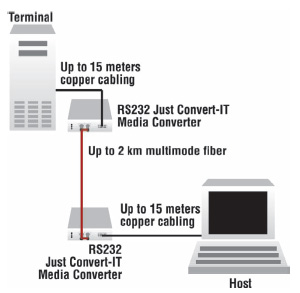

Application for J/RS232-CF-01  J/RS232-CF-01(SC)    J/RS232-TF-01    J/RS232-TF-01(SC)

Stand-Alone Media Converters Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS
devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables.


Product data sheet on the Transition Networks J/RS232 family Transition Networks J/RS232-CF-01 pdf
