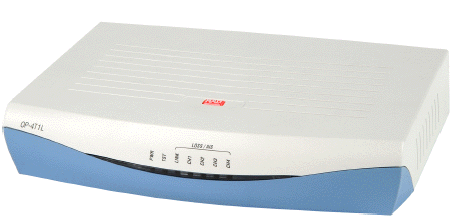

The Optimux-4T1L ( OP-4T1L ) multiplexer combines four T1 channels over a single fiber optic link
The Optimux-4T1L ( OP-4T1L ) multiplexer from RAD combines four T1 channels over a single fiber optic link (a pair or a single fiber optic strand). A pair of
Optimux-4T1L ( OP-4T1L ) units offers simple and low-cost connectivity at distances of up to 120 km/74 miles (see Figure 2).
Optimux-4T1L ( OP-4T1L ) transmits each of the T1 channels independently, so that each T1 channel can have a different clock source.
Optimux-4T1L ( OP-4T1L ) can operate opposite an Optimux-4T1 standalone unit, or an Optimux-4T1C card for the LRS-24 rack with central
SNMP management. This option provides a compact, cost-effective central solution (see Figure 1).

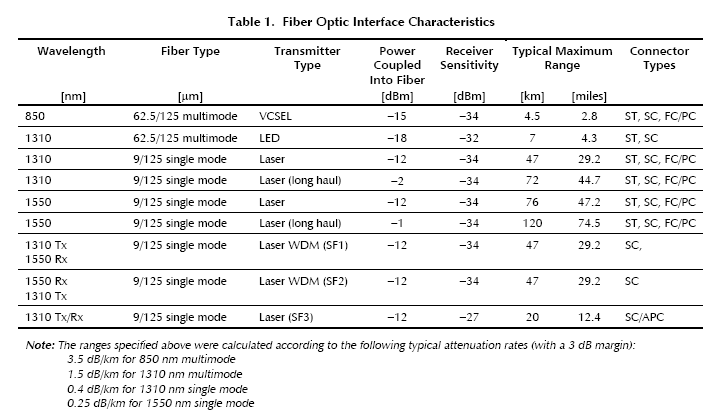

Various optical interfaces are available on the RAD Optimux-4T1L (OP-4T1L ):
850 nm VCSEL (Vertical Cavity Surface Emitting Laser) for multimode fiber 1310 nm LED for multimode fiber
1310 nm laser and 1550 nm laser diode or long haul laser for extended range over single mode fiber
Single fiber (SF1, SF2) using a 1310/1550 nm laser diode with WDM (Wavelength Division Multiplexing) technology, which enables
the laser to transmit the signal at a different wavelength than the receive signal
Single fiber (SF3) using SC/APC (Angle Polished Connector) technology with a 1310 nm laser diode for single wavelength operation.
To facilitate system diagnostics, Optimux-4T1L ( OP-4T1L ) features LED status indicators, AIS alarm generation and recognition, and dry contact
closure upon link failure.
Setup, control and diagnostics can be performed via a supervisory port using an ASCII terminal, or a SLIP connection to an SNMP
management station.
Network management is possible via RADview, RAD’s SNMP-based network management system.
RADview is available in a windows-based or Unix-based version.
Optimux-4T1L ( OP-4T1L ) is available as a compact 1U high, half-length unit that can be mounted in a 19” rack.

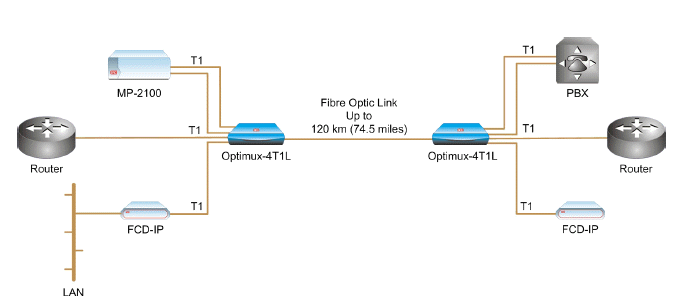

Figure 1. RAD Optimux-4T1L ( OP-4T1L ) Central to Remote Multi-Site Application
Figure 2. The RAd Optimux-4T1L ( OP-4T1L ) multiplexer in a Corporate Point
to Point Application
Key features of the
Optimux-4T1L ( OP-4T1L ) include:
Economically Multiplexes four T1 channels over a single fiber optic link
Operates with various fiber interfaces:
Multimode fiber
Single mode fiber
Single fiber (WDM)
Single fiber/single wavelength
Laser diode option for range of up to 120 km (74 miles)
Conforms to ITU G.703, G.823, G.824, G.955
Management via ASCII terminal or SNMP management station
Remote management using inband channel
Compact 1U high enclosure, half 19” size
Operates opposite Optimux-4T1 (standalone or card version for the LRS-24 19” rack)
Popular models of the
Optimux-4T1L ( OP-4T1L ) include:
OP-4T1L/FC13L 2780310000
OP-4T1L/FC85 2780300000
OP-4T1L/SC13 3251220000
OP-4T1L/SC13L 2780230000
OP-4T1L/SC13LH 2780380000
OP-4T1L/SC15LH 2780320000
OP-4T1L/SC85 2780330000
OP-4T1L/SCSF1 2780240000
OP-4T1L/SCSF2 2780250000
OP-4T1L/SCSF3 2780370000
OP-4T1L/ST13L 2780260000
OP-4T1L/ST15L 2780390000
OP-4T1L/ST85 2780290000
Data sheet for the RAD Optimux-4T1L ( OP-4T1L ) multiplexer
