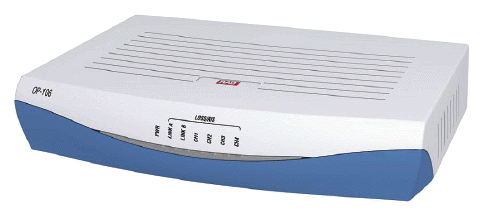

Optimux-106 ( OP-106 ) Four-Channel T1 and Ethernet Multiplexer

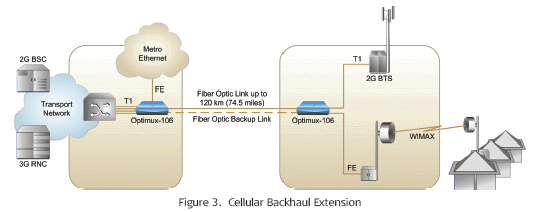

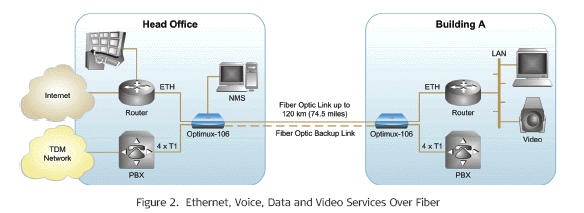

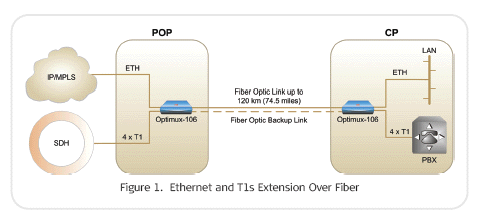

Optimux-106 ( OP-106 ) multiplexer combines up to four T1 channels and Ethernet link over a fiber optic link. A pair of RAD Optimux-106 ( OP-106 ) units provides a simple and low-cost solution for connectivity over distances of up to 120 km (74.5 miles). For transmission reliability, an optional modular second link provides automatic backup upon link failure. Optimux-106 ( OP-106 ) offer an optional second power supply provides power redundancy for failsafe operation. Each of the four T1 signals is transmitted independently, so that each T1 channel can be set to a different clock source.
Various optical interfaces are available on the RAD Optimux-106 ( OP-106 ):
850 nm VCSEL (Vertical Cavity Surface Emitting Laser) for multimode fiber
1310 nm LED for multimode fiber
1310/1550 nm laser diode or long haul laser diode for extended range over single-mode fiber
Single fiber (SF1, SF2 options) using a 1310 nm and 1550 nm laser diode transmitter with WDM technology, which enables the laser to transmit the signal at a different wavelength than the receive signal
Single fiber (SF3 option) using SC/APC (Angled Polished Connector) technology, with a 1310 nm laser diode for single wavelength operation.
To facilitate system diagnostics, the RAD Optimux-106 features LED status indicators, AIS alarm generation and recognition, and dry contact closure upon link failure.
Optimux-106 ( OP-106 ) Setup, control, and diagnostics are performed via a supervisory port using an ASCII terminal, an Ethernet connection to an SNMP management station, or a dedicated 10/100BaseT Ethernet port.
The Optimux-106 ( OP-106 ) can be managed by:
RADview-TDM running in a Windows or Unix environment
ConfiguRAD Web-based remote access terminal.
The power supply is a wide-range AC/DC power supply that can be connected to either an AC power source (100 to 240 VAC), or to a DC power source (–48 VDC).
Optimux-106 ( OP-106 ) is a compact standalone unit. A rack mount adapter kit enables installation of one or two (side-by-side) units in a 19-inch rack.
