Optimux-4E1 ( OP-4E1 ) multiplexer from RAD

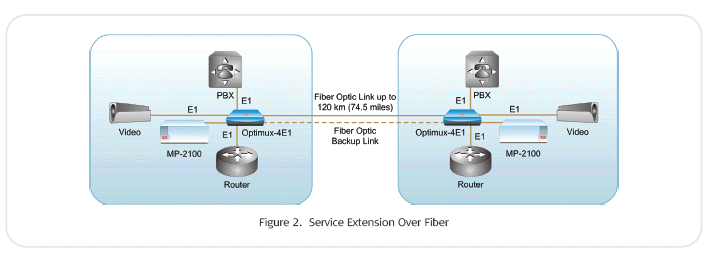

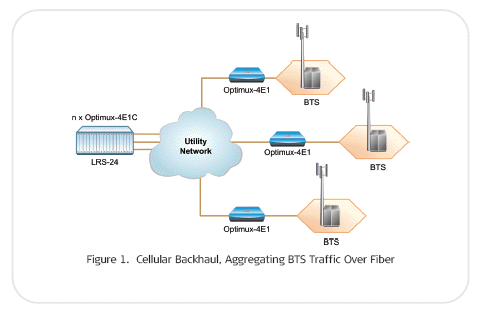

Optimux-4E1 ( OP-4E1 ) multiplexer combines up to four E1 channels over a fiber optics link. A pair of Optimux units provides a
simple and low-cost solution for connectivity over distances of up to 120 km (74.5 miles). For transmission reliability, an optional
modular second link provides automatic backup upon link failure. An optional second power supply in the RAD Optimux-4E1 ( OP-4E1 ) provides power redundancy for failsafe operation. Each of the four E1 signals is transmitted independently, so that each E1
channel can be set to a different clock source.
Optimux-4E1 ( OP-4E1 ) has various optical interfaces are available:
850 nm VCSEL (Vertical Cavity Surface Emitting Laser) for multimode fiber
1310 nm LED for multimode fiber
1310 nm laser and 1550 nm laser diode or long-haul laser for extended range over single-mode fiber
Single fiber (SF1, SF2 options) using a 1310 nm and 1550 nm laser diode transmitter with WDM technology, which enables the laser
to transmit the signal at a different wavelength than the receive signal
Single fiber (SF3 option) using SC/APC (Angled Polished Connector) technology, with a 1310 nm laser diode for single wavelength
operation.
Optimux-4E1 ( OP-4E1 ) diagnostics:
To facilitate system diagnostics, RAD Optimux-4E1 ( OP-4E1 ) features LED status indicators, AIS alarm generation and recognition, and dry contact
closure upon link failure.
Setup, control, and diagnostics are performed via a supervisory port using an ASCII terminal, an Ethernet connection to an SNMP
management station, or a dedicated 10/100BaseT Ethernet port.
Optimux-4E1 ( OP-4E1 ) can be managed by:
RADview-TDM running in a Windows or Unix environment
ConfiguRAD Web-based remote access terminal.
Optimux-4E1 ( OP-4E1 ) power supply is a wide-range AC/DC power supply that can be connected to either an AC power source
(100 to 240 VAC), or to a DC power source (–48 VDC).

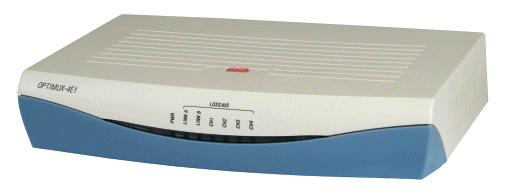

Optimux-4E1 ( OP-4E1 ) is a compact standalone unit. A rack mount adapter kit enables installation of one or two (side-by-side)
units in a 19-inch rack.
Optimux-4E1 ( OP-4E1 ) multiplexer product data sheet
(pdf)
Optimux-4E1 ( OP-4E1 ) models include:
OP-4E1-M/ST/85L 3240820000
OP-4E1-MNG-CARD 3240600000
OP-4E1/B/R/FC13L 3242420000
OP-4E1/B/R/FC13L/D 3242340000
OP-4E1/B/R/SC13L/D 3242370000
OP-4E1/B/R/ST13L 3242740000
OP-4E1/B/R/ST85/D 3242830000
OP-4E1/B/SC85L 3242400000
OP-4E1/B/ST13L 3242530000
OP-4E1/B/ST85 3242280000
OP-4E1/CF/U/CX 3242260000
OP-4E1/U/FC13L 3242380000
OP-4E1/U/R/CX/D 3242580000
OP-4E1/U/R/FC/13L 3243080000
OP-4E1/U/R/ST13L/D 3242750000
OP-4E1/U/R/ST15L/D 3242730000
OP-4E1/U/R/ST85 3242440000
OP-4E1/U/SC/SF3 3243250000
OP-4E1/U/ST13L 3242390000
OP-4E1CB/U/ST13L/D 3241190000
