ROC-19 and ROC-19L Outdoor Cabinet
When you need an outdoor enclosure to mount one of the RAD ETX-2 series hardened
products, RAD offers the power ventilated ROC-19 or the passive ventilation
ROC-19L.
Key points include:
• Outdoor cabinet for one 19”-wide RAD unit, with integrated fiber splicer and guides
• IP56-66/NEMA-4-rated metal enclosure
• Effective grounding and over-current protection
• 2- or 3-point door locking
• Intake fan with replaceable filters, or passive cooling
• Wall or pole mounting

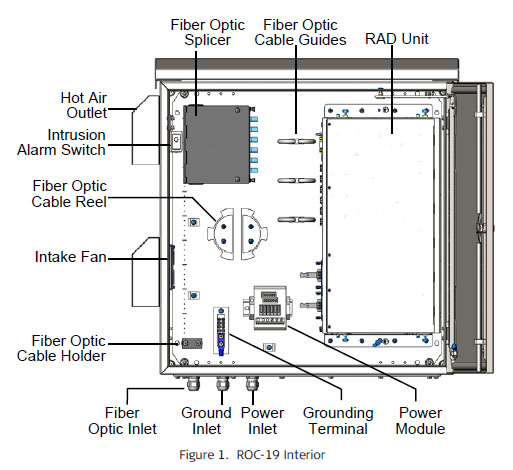

ROC-19/19L is a fully contained outdoor cabinet intended for housing a single 24 VDC or 48 VDC-powered (ordering
option), 19”-wide RAD unit. Constructed for outdoor use, the enclosure is ideal for
residential neighborhood/apartment block telecommunication needs.
Ruggedized IP56 ( ROC-19 ) and IP66 ( ROC-19L ) NEMA-4-rated construction with rain hood offers full shielding and
elemental protection. Efficient ventilation is assured by intake fan with replaceable
air filters ( ROC-19 ) or passive convection ( ROC-19L ).
2-point ( ROC-19L ) or 3-point door locking ( ROC-19 ), integrated fiber cable
splicer/guide system, intrusion detection and over-current protection ensure secure, efficient maintenance access
to this outdoor cabinet.
Data sheet for the ROC-19 and ROC-19L
Outdoor Cabinet (pdf)
